Won-Door FireGuard™
Accordion-Type Fire Doors & Moveable Fire Wall

The Won-Door FireGuard™ System

The Won-Door FireGuard™ system, featuring 24-gauge corrugated steel panels and a 6-8 inch dead air space with a fire-protective liner, provides enhanced fire safety. For over 20 years, Won-Door’s FireGuard has led the market in fire safety design, consistently exceeding all three model building codes through rigorous testing. In many projects, Won-Door FireGuard systems have proven to be the only practical solutions that meet code requirements.

FireGuard’s design is approved by the US model building codes and the IBC for almost unrestricted use in egress applications. Additionally, FireGuard doors are UL-listed for up to 3 hours as a fire door. These doors are also recognized by many state and local governments.

The tight-fitting floor sweep and fire liner provide excellent seals, effectively blocking both smoke and toxic fumes. The doors meet code requirements for “tight-fitting smoke and draft control” as demonstrated through special testing.

Patented Design Features
FireGuard’s patented track-and-trolley system supports each panel with a separate pin and roller, evenly distributing the weight and ensuring a tight fit. This unique design allows for unlimited width and height coverage up to 23 feet.

Curved Opening Applications

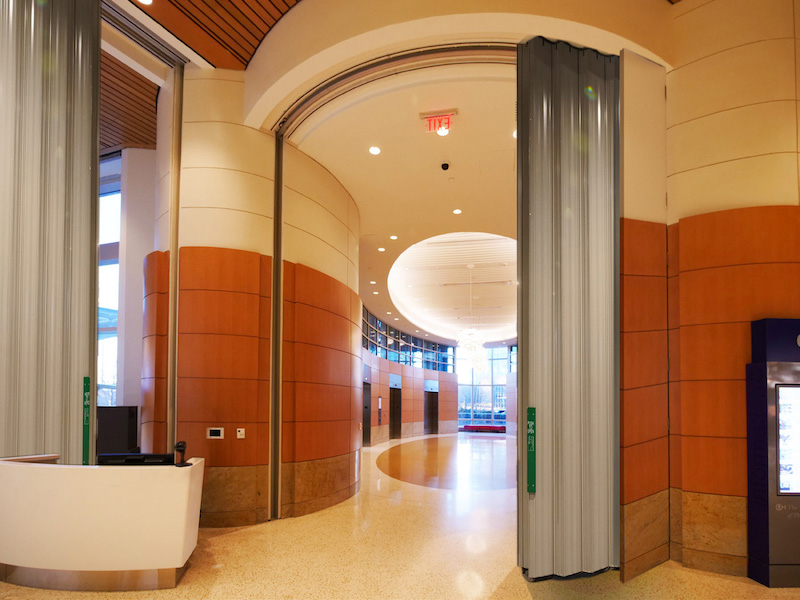

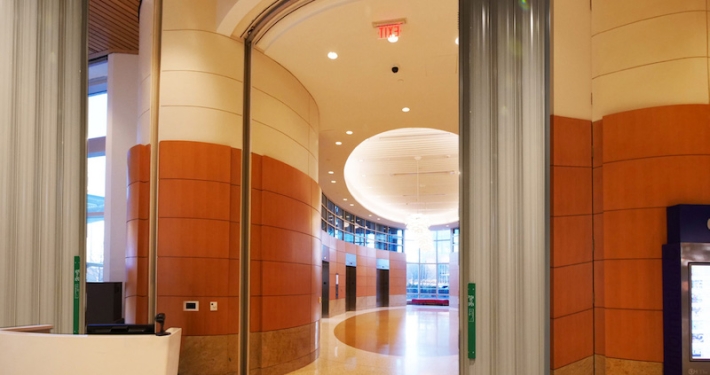

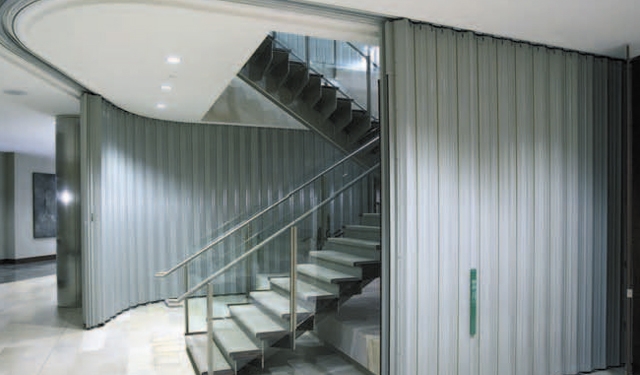

The Won-Door FireGuard™ system offers a unique capability that sets it apart from standard fire-rated doors – the ability to be specified for curved openings. With a minimum radius of just 5 feet, the FireGuard system can be installed in architectural designs that previously would have been unable to accommodate a fire-rated door.

No Floor Track
The FireGuard system provides effective smoke and draft control without the need for a floor track.

Out of Sight When Not in Use
FireGuard™ doors are highly effective fire and smoke barriers that can fold to mere inches thick, allowing them to blend seamlessly into the surrounding decor when installed as pocket doors.

Automatic Operation in Event of a Fire
If a smoke alarm is triggered, the system can be programmed to automatically close using a fail-safe backup DC power supply.

Disability Access & Manual Override
The FireGuard’s pressure-sensitive leading edge immediately halts door closure upon contact with an obstruction. It then pauses briefly before resuming closure. Users can override the automatic operation at any time. Additionally, fire-exit hardware can be installed to open the door a preset width, pause, and then close the door with each activation.

Centralized Control
The wall-mounted control unit allows door status to be monitored remotely from a central location. At a glance, you can check the position, control function, and status of the backup DC power supply.

Typical Won-Door FireGuard Applications

Use of the Won-Door FireGuard system has become a reliable and practical approach to solving a vast array of fire safety issues:

ADA Compliance
Area Separation

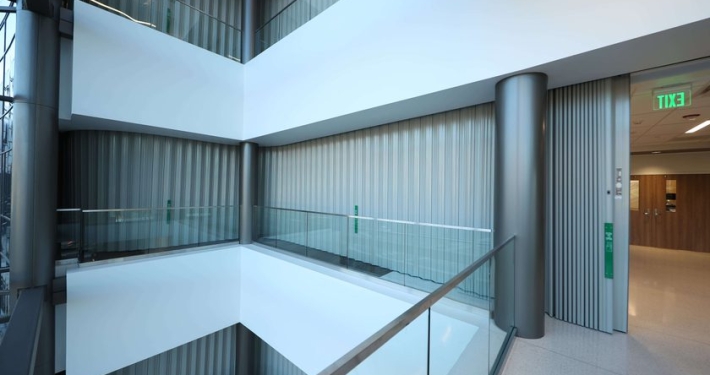

Atrium Separation
Corridor Separation

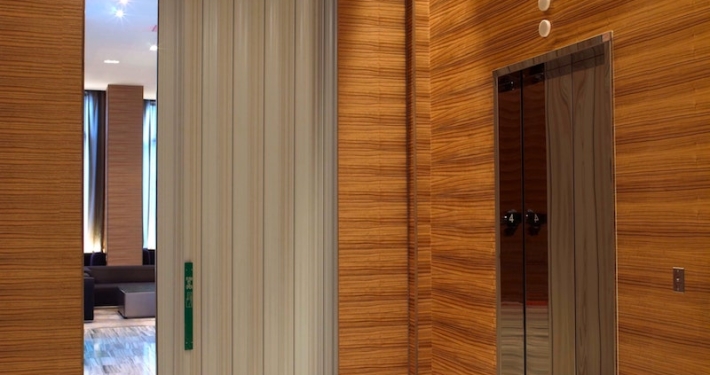

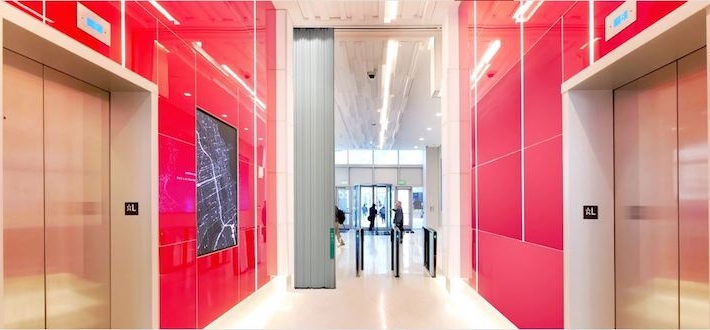

Elevator Lobby Separation
Horizontal Exits
Occupancy Separation
Safe Areas of Refuge
Smoke Barrier
Smoke & Draft Control
Stage Proscenium Protective
Vertical Opening Protective

Moveable Fire Wall (MFW)

The Won-Door FireGuard™ system has a special fire-resistive rating called a “Moveable Fire Wall” that is awarded after testing to ASTM E-119 standards. Unlike traditional fire doors, Moveable Fire Walls are required to maintain a “low back-face temperature” during the test, with the average of all thermocouples not exceeding 250°F above ambient temperature. This unique specification allows architects to protect large openings that would otherwise be restricted by standard fire door size limitations. As a result, Moveable Fire Walls offer more design flexibility compared to typical fire door applications.

Durability
Each 24-gauge steel panel in a Won-Door partition is corrugated for extra strength. The surface colors and vinyl finishes are permanently bonded to resist dings, dents, and scratches. Won-Door partitions operate on a patented two-track system with no internal parts that can be damaged.
The dead-air space between the two walls creates an effective sound barrier and cushions against even severe impacts. A Won-Door door can withstand tremendous abuse without showing any marks or scratches. These partitions are available in a wide variety of colors and simulated wood grain finishes.

Easily Installation and Repair
Won-Door partitions can be easily installed by trained personnel using simple tools, without the need for any special equipment. Additionally, in-house maintenance staff can quickly repair damaged parts, such as panels, hinges, or rollers, by simply removing and replacing the individual component while the door remains in place. This “in-place” repair capability is unique to the Won-Door partition system. To facilitate these repairs, a spare section of track is provided, allowing panel sections to be removed and replaced without disturbing the rest of the partition.

fire separation atriums fire doors and moveable firewalls

Won-Door Products

WON-DOOR FIREGUARD AFG DOOR

The Won-Door FireGuard AFG sliding fire door facilitates unimpeded pedestrian traffic flow and open floor plans, while offering standard and optional advanced access control features. These AFG products come in customizable dimensions and can fit any straight single-panel door up to 40 feet wide and 15 feet tall, with an air pressure differential of 0.1 WC or less.

Won-Door Corporation’s invention of the accordion-style, horizontally sliding fire and security door has significantly influenced model code requirements governing their use. These innovative doors can replace traditional solutions across a wide range of egress and access control applications. When security is paramount, Won-Door’s Fireguard AFG accordion doors can rapidly restrict access and visibility to corridors and building areas.

All Won-Door Fireguard AFG accordion access control doors are:
• Designed to meet all egress requirements for IBC Chapter 10 and NFPA Chapter 7
• U.L. listed for up to 3-hours (“A” label)
• Tested in accordance with U.L. 10B-10C
• Automatic closing system listed in accordance with U.L. 864/294

WON-DOOR FIREGUARD FG DOOR

The Won-Door FireGuard sliding fire door facilitates unobstructed pedestrian traffic flow and supports open floor plans. All FG products are custom-manufactured to fit the specific requirements of each application, accommodating openings of any width, heights up to 30 feet, bi-parting configurations, and curved designs.

The accordion-type, horizontal sliding fire and security door, invented by Won-Door Corporation, has significantly influenced model code requirements governing their use. These doors can now replace traditional solutions in virtually any egress or access control application. The FireGuard FG door is available in both straight and curved configurations.

All Won-Door Fireguard FG accordion fire doors are:
• Designed to meet all egress requirements for IBC Chapter 10 and NFPA Chapter 7
• U.L. listed for up to 3-hours (“A” label)
• Tested in accordance with U.L. 10B-10C
• Automatic closing system listed in accordance with U.L. 864

WON-DOOR FIREGUARD MFW (MOVABLE FIRE WALL)

The Won-Door FireGuard’s Moveable Fire Wall offers a distinct fire-resistive rating that can be used as an alternative to traditional fire barriers when building codes limit the size of penetrations. Designed to meet ASTM E-119 standards, the Moveable Fire Wall allows protection for large openings that would otherwise be restricted by code requirements.

The Won-Door FireGuard MFW (Movable Fire Wall) is U.L. certified to meet the ANSI/UL263 (ASTM E119) criteria. This provides a viable solution when building codes limit the size of openings in a fire barrier.

The FireGuard MFW is available in the following U.L. ratings: MFWI (1-hour) or MFWII (2-hour). 2021 IBC – 707 Fire Barriers. 707.6 Exception 3: Openings shall not be limited to 156 square feet (15m²) or an aggregate width of 25 percent of the length of the wall where the opening protective has been tested in accordance with ASTM E119 or UL 263 and has a minimum fire-resistance rating not less than the fire-resistance rating of the wall.*Increased custom heights & widths available with AHJ approval.

Moveable Fire Wall Features:
• Heavy Duty Unitized Track System (HDUTS) eliminates the layers of plywood and drywall found in conventional accordion fire door headers.
• Won-Door FireGuard MFWI & MFWII comply with ASTM E119 & ANSI/U.L. 263
• Automatic closing system listed in accordance with U.L. 864
• Doors require 1′-8″ wide pockets
• Won-Door FireGuard MFWI & MFWII doors are U.L. approved for openings up to 10′-0″ in height & 30′-0″ in width.
Pocket cover door & bumper supplied by others.

Moveable FireWalls have the following standard and available options:

Standard:
• Available in one- and two-hour fire-resistance ratings
• Available in narrow leadpost configurations only
• Available in single parting configurations only

Won-Door’s standard production sizes:
• Straight opening MFWs up to 40’ wide and 15’ in height (All opening sizes are subject to approval by the AHJ)
• Curved opening MFWs up to 30’ wide and 12’ in height (All opening sizes are subject to approval by the AHJ)

Includes leading edge obstruction detection:
• CCOM rocker switch, located near the leadpost, is used to open & close the MFW, temporarily mute beeping alerts, and clear any fault conditions

Options:
Key Switch: A wall-mounted key switch can be specified to replace the CCOM rocker switch and limit operation to authorized users
Exit Device: An exit device can be specified to provide egress while the MFW is in normal operating mode or fire alarm mode (AHJ approval required)
Status Display: A single door, LCD display is a wall-mounted display providing current status and any fault conditions of the MFW
Optical Obstruction Detectors: These sensors are used to alert occupants if the path of travel becomes obstructed by objects that could hinder operation (straight track configurations only)

WON-DOOR DURASOUND

DuraSound’s accordion folding doors enhance a building’s functionality by serving multiple purposes. These adaptable partitions are affordably priced, cost-effective to install and maintain, and outlast any other folding partition available.

Won-Door’s DuraSound accordion folding doors enhance a building’s functionality by serving multiple purposes. These adaptable partitions are competitively priced, cost-effective to install and maintain, and outlast any other folding divider on the market.

The dual-wall DuraSound accordion folding partition offers industry-leading sound insulation, with an STC 48 or equivalent NIC 30 rating. Its corrugated steel panels provide exceptional strength, while the permanently bonded surface colors and vinyl finishes ensure long-lasting durability and resistance to dents, dings, and scratches.

The DuraSound doors weigh only 4.2 pounds per square foot and operate on a two-track system. Each panel is suspended by a pin and roller, which enables smooth, effortless operation. This unique design allows the doors to span large, as well as curved, openings. The doors are available in unlimited widths and heights up to 28 feet, though motorized units are recommended for doors taller than 15 feet or longer than 30 feet.

Sound Transmission Class
• DuraSound doors have an STC rating of 48 (Laboratory Test)& NIC rating of 30 (Field Test)

Motor Drive Systems
• Above header motor configuration recommended for doors greater than 15′-0″ tall and/or 30′-0″ in length (Requires 24″ clearance)*Below header options available.

Header Configurations
• DuraSound head details vary depending upon adjacent construction.
• T-09 soffit configurations work best with gypsum ceilings and motorized applications.T-11 soffit configurations work best with ACT ceilings.
