Service & Maintenance Department

BRING YOUR FIRE DOOR OPENINGS
UP TO CODE!

SOLVE JCAHO INSPECTION ISSUES

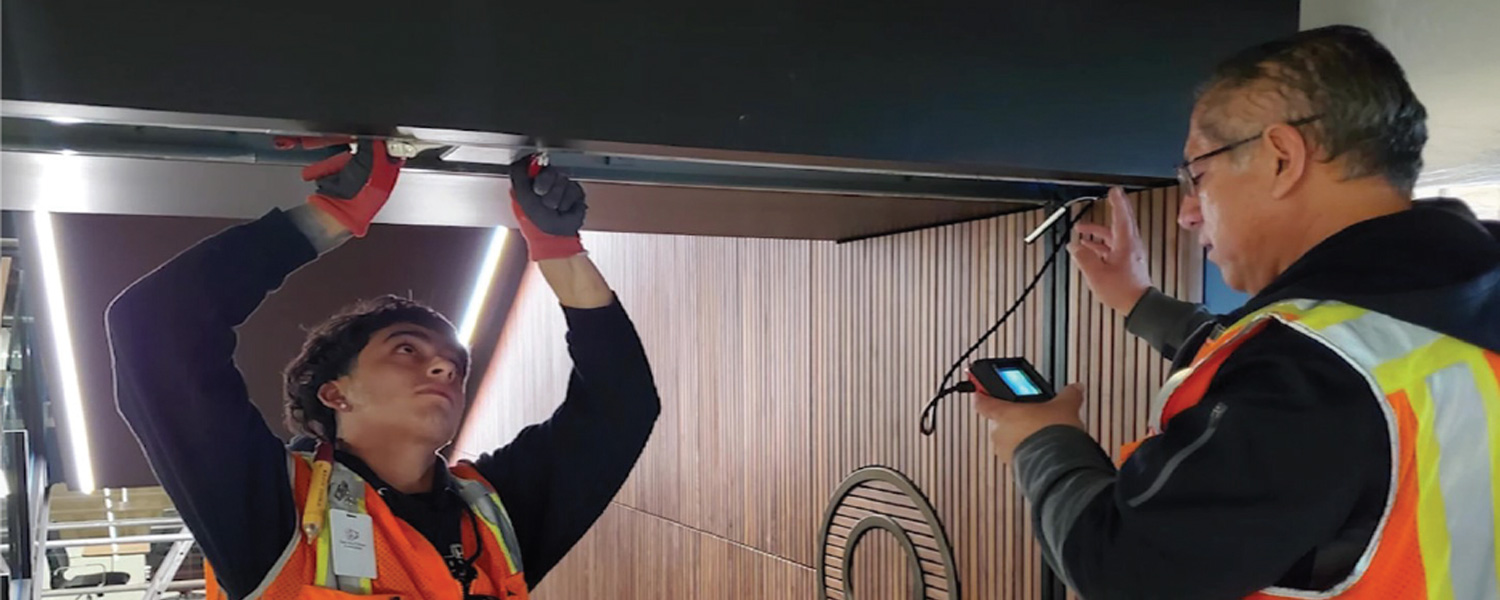

Service worker providing maintenance

TESTING AND INSPECTION


SERVICE AND REPAIR


PREVENTATIVE MAINTENANCE


FIRE DOOR RETROFIT


BRING YOUR ENTIRE FACILITY UP TO CODE

Contact us:

Phone: 866-534-3667

Email: service@doorsysinc.com

EXTEND THE LIFE OF YOUR INVESTMENT

The annual service offered by Door Systems helps ensure your DSI Smoke and Fire Curtains, as well as other fire door assemblies, are maintained properly. Door System’s highly trained staff of experts can perform the following services:

  • Maintain the warranty on
DSI Fire/Smoke Curtains
  • Won-Door Service & Maintenance
Certified Won-Door Distributor
  • Service and maintain all other
types/brands of smoke and fire curtains
  • Service all brands of Integrated
Fire Door Assemblies: Syntegra, Total Door, Rite Door
  • Inspection test form and inspection label with date tested
  • Certified IFDIA fire door
inspection reports
  • Service and maintain other types
of fire rated life safety opening protectives
  • Automatic doors including access controls and motor operators AADM Certified
  • Annual drop test/inspection of all fire doors to keep entire facility up to code
  • Service and retrofit all swinging fire doors

WHY YOU NEED TO TEST YOUR SYSTEM ANNUALLY

  • Under the 2018 IBC, NFPA 80 and NFPA 105 all fire rated
openings must be tested, serviced, and maintained annually in
accordance with IBC section 705.2.6
  • Protect the 2-year warranty on DSI Curtains
  • Updated service inspection logs to avoid code violations
  • Prevent facility shut downs from (AHJ) Authorities Having
Jurisdiction

DSI SMOKE AND FIRE CURTAIN 24 POINT INSPECTION ANNUAL SERVICE

  • Main power failure mode on GCP
  • Back-up power supply
  • Batter and low voltage disconnect
  • All fuses
  • Fire alarm contact
  • Key switch contact to the fire alarm
  • MCC 24v power supply at GCP
  • MCC supply in/out at MCC
  • Motor supply in/out at MCC
  • Transformer and line voltage
  • Loop voltage
  • Brake loop (if applicable)
  • Emergency up buttons
  • Delayed reset controls and timers
  • Inspect coil box housing and side rails for Obstructions
  • Inspect for possible objects placed in the path of
curtain deployment that can cause obstructions
  • Inspect curtain fabric for damage
  • Egress signage
  • Perform cycle test on curtain system for efficient and safe operation per NFPA 3 guidelines
  • Spray anti-static solution on printed circuit Boards
  • Lubricate all contacts
  • Perform fire drop test
  • Update/reprogram service module
  • Maintain and record service log

WON-DOOR MAINTENANCE AND INSPECTIONS

Won Door logoDid you know Won-Doors should be tested quarterly
and receive routine maintenance at least once a year?

Door Systems has training and experience as a factory
authorized and certified Won-Door service provider and
distributor.

The DSI Team is your trusted local authorized service provider for
Won-Door and is highly trained in using specialized diagnostic equipment
for accordion fire door systems.

Check out all of our Won-Door Accordion Fire Door products.

12 POINT WON-DOOR MAINTENANCE

  • Full cycle test of closing and opening sequence
  • Test the push to open egress paddle
  • Fire alarm activation through smoke
detector
  • Check bottom seals for tears or gaps
  • Clean and oil all chains and gears
  • Check for obstructions in the path of
the door
  • Verify door is self-closing and
sealing properly
  • Check for minimum 36” clearance
for egress
  • Test safety edge sensor
  • Check all chains and gears for proper function
  • Check battery operation and charge
  • Maintain and record service log
Won Door inspection

THE SYNTEGRA DOOR SYSTEMS RETROFIT

The most versatile door for your toughest Retrofit Applications

An integrated door systems with all the hardware factory installed, reducing
installation time, noise, and inconvenience to existing tenants.

  • Give yourself some room!
The low-profile hardware gains
additional space in hallways and
 corridors to maintain 44” of clearance
  • Upgrade existing opening to meet local/national fire codes, ADA
requirements, and JCAHO standards
  • Dramatically improve the look of
 worn-out openings
  • Custom sizes available
  • 5 year warranty
  • Various electronic options available
  • All electronics factory installed to integrate with access controls
  • The Syntegra Edge is adjustable Retrofit applications
  • Lower construction costs by eliminating the need to replace frames
  • The Syntegra Door System
eliminates vertical rods, astragals, coordinator, floor strikes or flush bolts
BeforeAfter

Let us solve your Life Safety needs
so you can rest easy

DSI-Smoke-Curtain-Service
Syntegra-Retrofit
