• DSI-HS10B HOSE STREAM RATED SMOKE AND FIRE CURTAIN

    » 180 minute UL10B Fire Rating with Hose Stream test
    » UL1784 Smoke Rating
    » Push Button Emergency Egress
    » Fire rated Fiberglass Fabric

    DSI-HS10B Hose Stream Curtains

Design Info & Specs

Standard Smoke Curtain incorporating fiberglass fabric.

Approvals & Listings CAD Details & More Info

DSI-HS10B Hose Stream Rated Smoke and Fire Curtain

The DSI-HS10B Hose Stream Rated Smoke and Fire Curtain incorporates the cutting-edge technology of our UL 10D fire curtain products but with the advantage of being code compliant in any fire wall rated up to 3 hours.

With a UL 10B 3-hour fire rating, the DSI-HS10B Fabric Fire Shutter can be used in fire walls and fire barrier walls as a replacement solution to traditional Coiling Steel Fire doors. Learn more at our fire shutter frequently asked questions.

The Overhead Coiling Fire Curtains assembly is comprised of a proprietary multi layered fire rated fiberglass/stainless steel fabric wound around a roller which is encased in a compact head box that is typically installed above the ceiling with side guides that are buried in the wall. This makes the system virtually invisible until activated.

Advantages vs Coiling Steel Fire Doors:

  • Cost effective
  • Lightweight – 75% lighter than overhead steel fire doors
  • Compact headbox – as little as 9” but no more than 12” of headroom required for larger sizes
  • Minimal side room required — 4” for any size
  • No size restrictions – Almost unlimited in size
  • Various egress options available
  • 24-volt system with Battery backup standard
  • Gravity Failsafe System with Auto reset
  • No exposed mechanisms, gears, chains, or motor parts
  • Can be almost completely hidden in your architectural design scheme
  • Code Compliant – Tested and Labeled to UL 10B 180 minutes with hose stream. UL1784 “S” label
Hose Stream Rated Curtain Test
Hose stream rated comparison

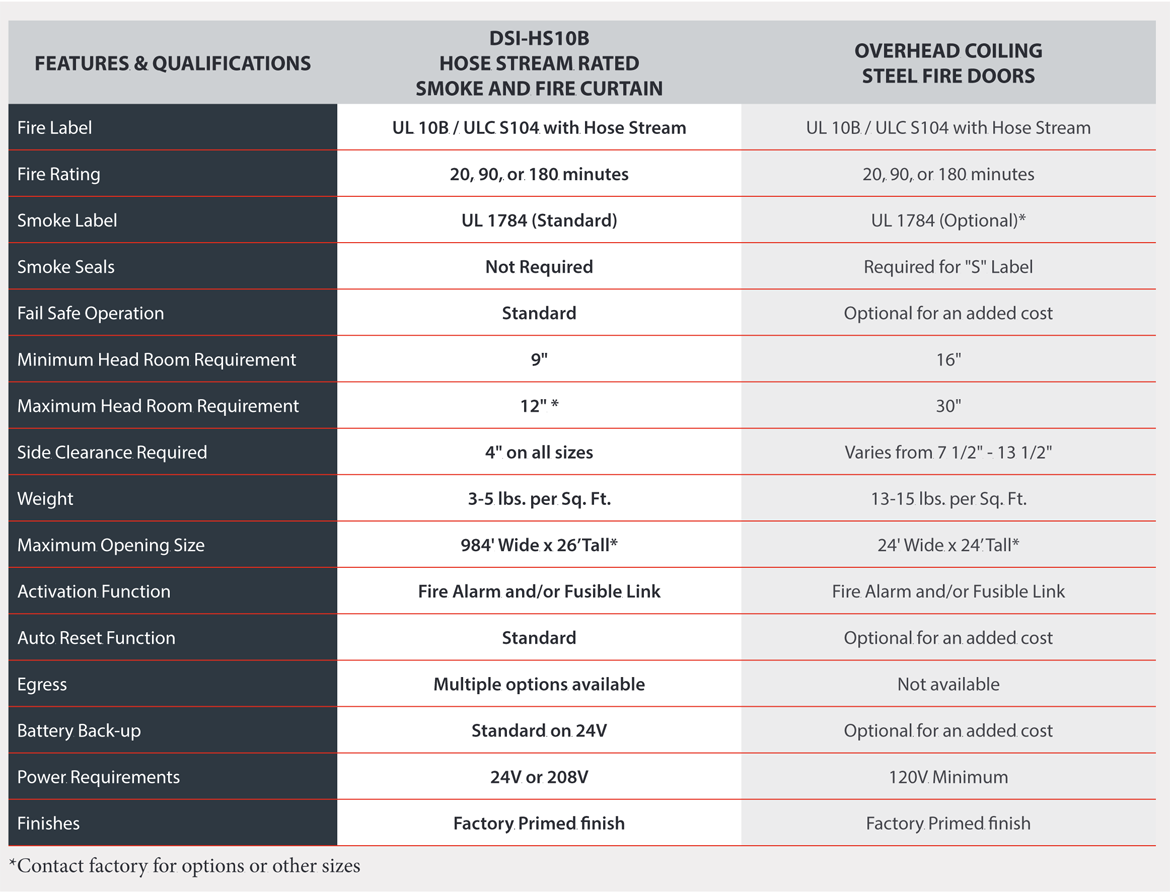

Comparison chart of hose stream vs steel doors

Compliant with

UL 10 B: With Hose Stream – 180 minutes
UL 1784: Air leakage test of door assemblies
UL 864: Control Units for Fire Protective Signaling Systems

Options

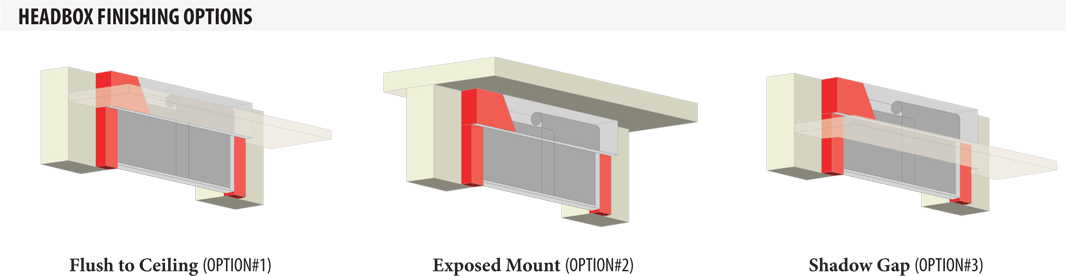

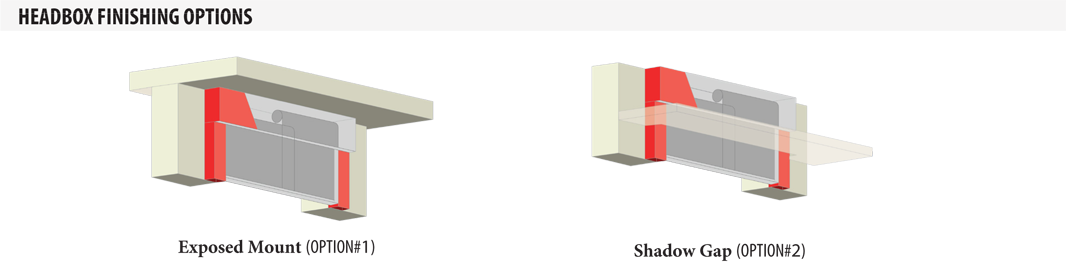

Hose stream headbox diagram

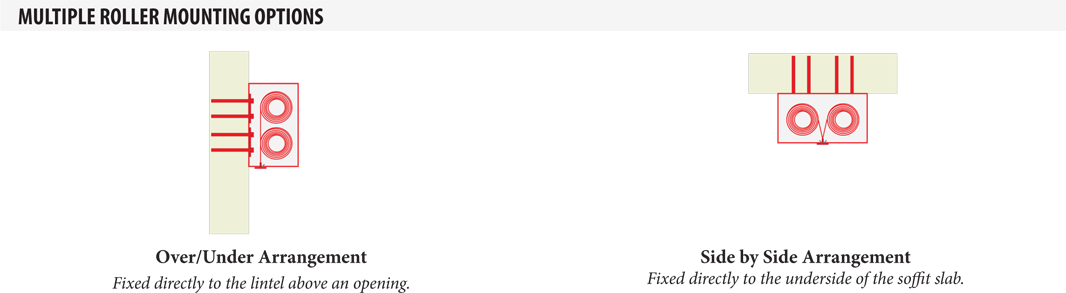

Hose stream mounting diagram

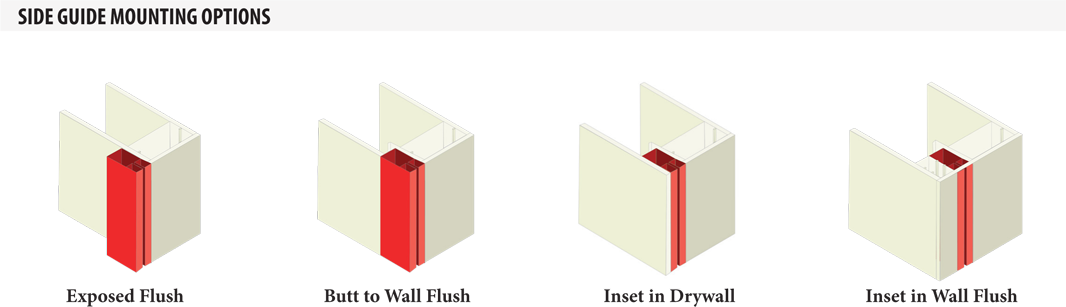

Hose stream mounting diagram
Hose stream mounting diagram
