• DSI-HHS10B HOSE STREAM RATED HORIZONTAL FIRE SHUTTER

    » 120 minute UL10B Fire Rating with Hose Stream Test
    » UL 864 Control Units for Fire Protective Signaling Systems
    » Widths to 32 feet wide
    » Fire rated Fiberglass Fabric

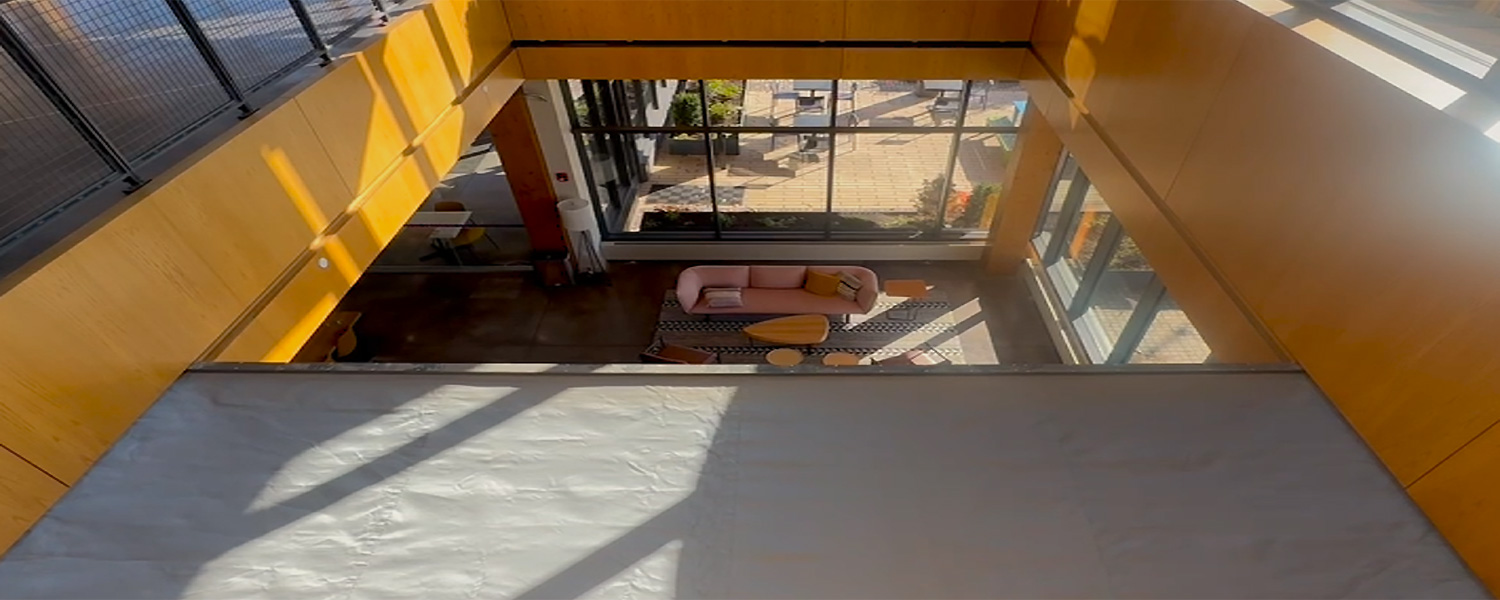

    DSI-HHS10B Horizontal Hose Stream Curtains testing

Design Info & Specs

Standard Smoke Curtain incorporating fiberglass fabric.

Approvals & Listings CAD Details & More Info

DSI-HHS10B Hose Stream Rated Horizontal Fire Shutter

The DSI Hose Stream Rated Horizontal Fire Shutter, a horizontal fabric fire shutter,  allows architects to compartmentalize large floor openings and reduce or eliminate mechanical smoke evacuation systems. A solution to design challenges of preventing smoke and fire from spreading through the ceiling and atrium voids, stairwells, and skylights.

The UL 10B Horizontal Fire Shutter consists of a light gauge compact steel headbox that houses the roller, fabric, and motor within the casing to create a small package that remains virtually invisible until deployed. The curtain consists of a light weight proprietary multi layered fire rated fiberglass/ stainless steel fabric and slim steel side guides.

The DSI-HHS10B Hose Stream Rated Horizontal Fire Shutter incorporates the cutting edge technology of our UL 10D curtain products but with the advantage of being tested and labeled to 2 hours UL 10B with Hose Stream.

Have questions? Learn more at our fire shutter frequently asked questions.

Features for UL 10B Hose Stream Rated Horizontal Fire Shutter:

  • UL 10B 120 minutes with Hose Stream
  • Lightweight – 75% lighter than steel fire doors, requires little to no structural support
  • Compact design
  • Creates open space for your building design
  • Saves money by reducing or eliminating smoke evacuation systems
  • Battery backup system standard
  • Fail-safe deployment with automatic reset
  • Multiple mounting options
  • Widths to 32 feet wide
  • Lengths to 32 feet long*

    *For larger sizes consult the factory

Compliant with

UL 10B: With Hose Stream – 120 minutes
ASTM E84: Class A Surface Building Characteristics of Building Materials
UL 864: Control Units for Fire Protective Signaling Systems

Options

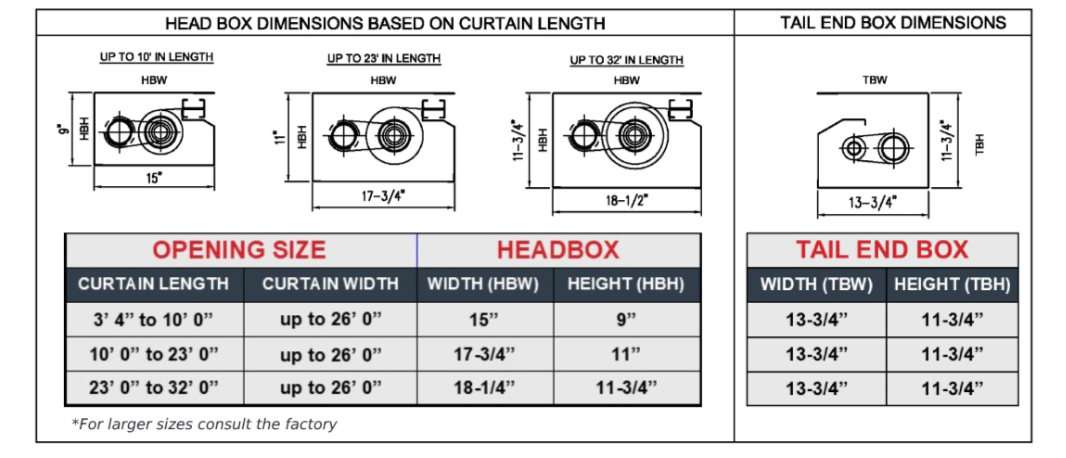

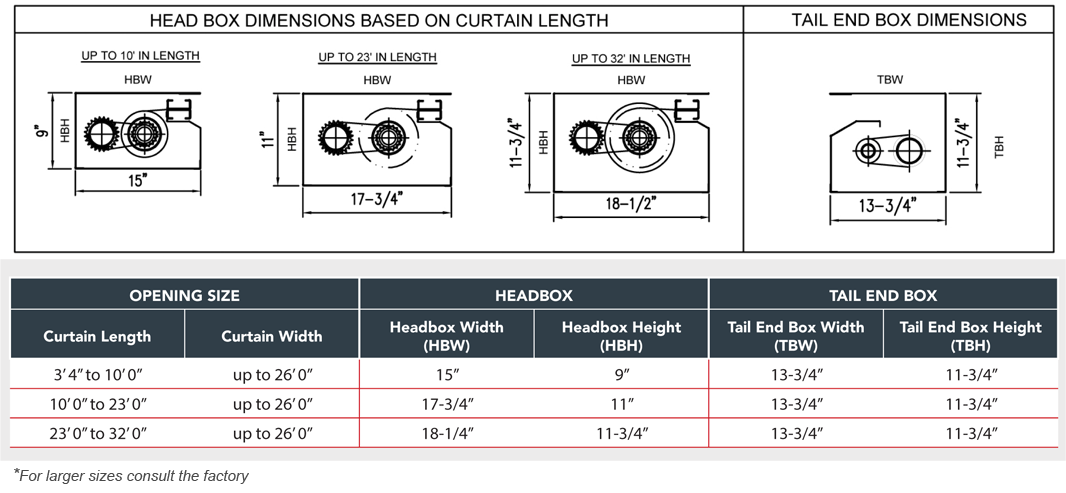

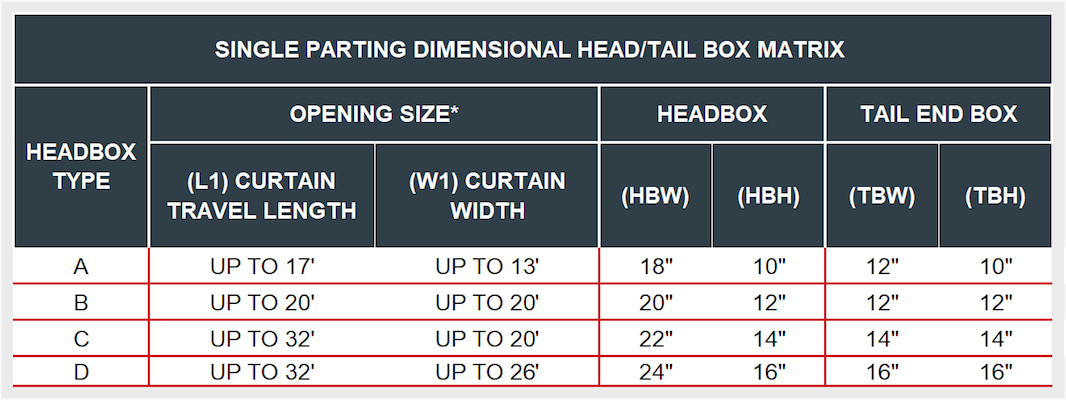

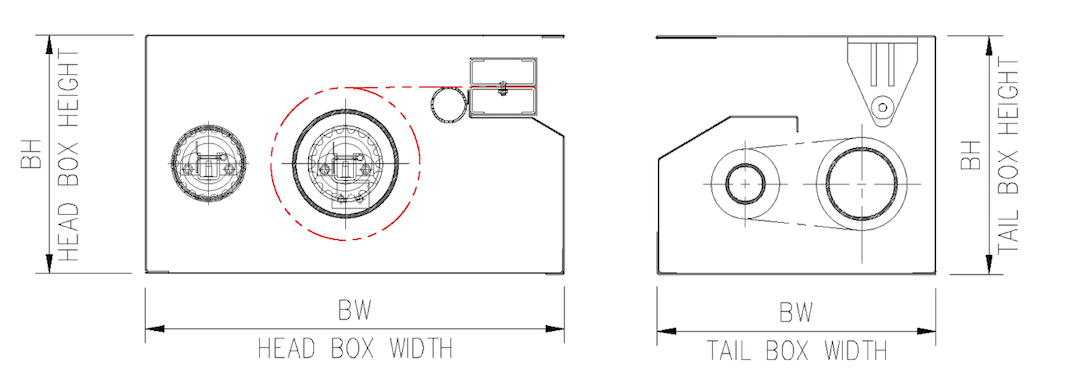

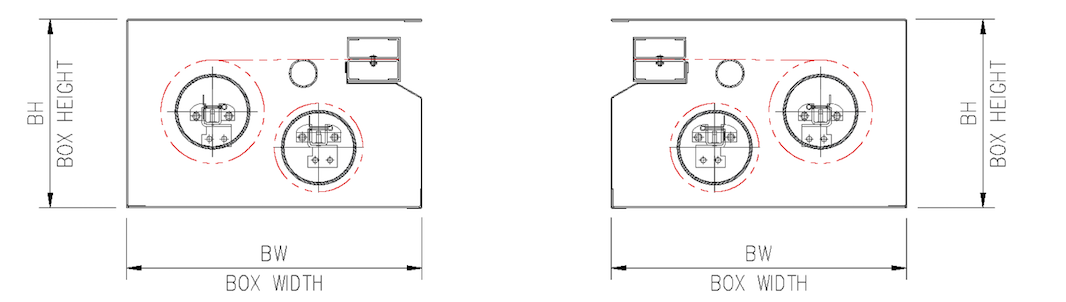

Headbox dimensions diagram

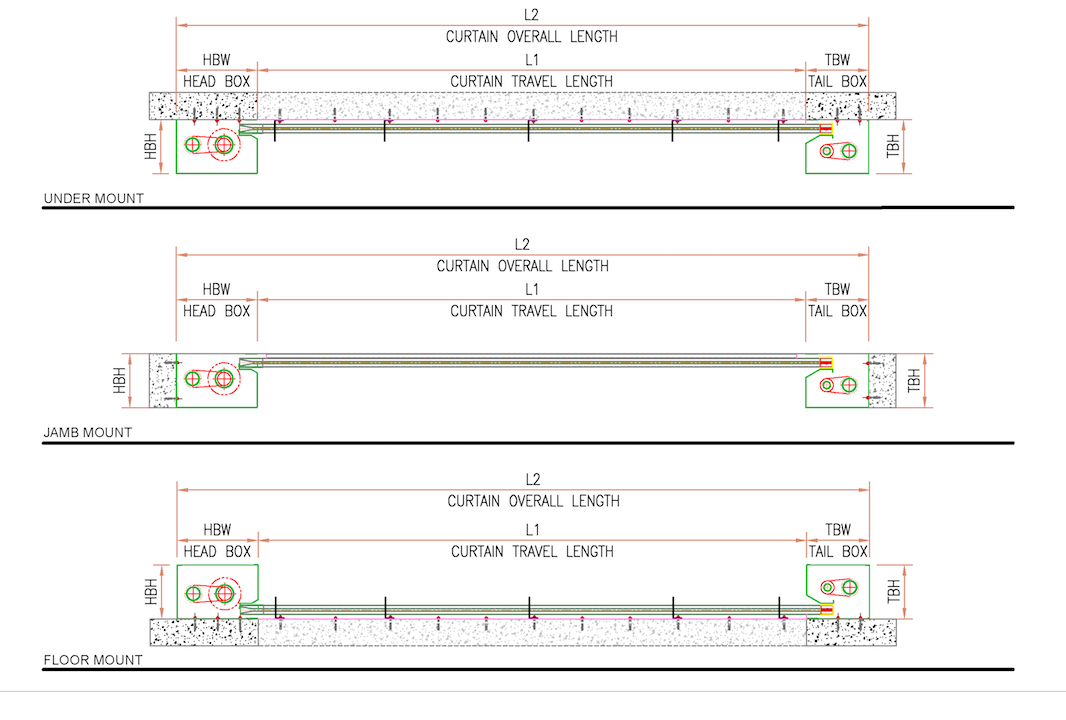

Mounting options diagram
